RAFT: Recurrent All-Pairs Field Transforms for Optical Flow 돌려보기

RAFT를 이용해 dense optical flow를 계산해보고자 한다.

아래와 같이, torchvision.models.optical_flow로부터 이미 train된 raft 모델을 가져와, image와 optical flow를 overlay 해보 았다.

import numpy as np
import torch
import matplotlib.pyplot as plt
import torchvision.transforms.functional as F
import torchvision.transforms as T
import cv2
from torchvision.models.optical_flow import raft_small
from torchvision.models.optical_flow import raft_large

def preprocess(batch):
    transforms = T.Compose(
        [
            T.ConvertImageDtype(torch.float32),
            T.Normalize(mean=0.5, std=0.5),  # map [0, 1] into [-1, 1]
            T.Resize(size=(512, 512)),
        ]
    )
    batch = transforms(batch)
    return batch

def add_arrow_line(img,flow):
    for y in range(16,flow.shape[1]-16,32):
        for x in range(16,flow.shape[2]-16,32):
            cv2.arrowedLine(img, (x,y), (x+int(flow[0][y][x]),y+int(flow[1][y][x])), (255,0,0))
    return img



device = "cuda" if torch.cuda.is_available() else "cpu"
img1= cv2.imread('20231014_233154.jpg')
img2= cv2.imread('20231014_233150.jpg')

# model = raft_small(progress=False).to(device)
model = raft_large(pretrained=True, progress=False).to(device)

model = model.eval()
img1_stack=torch.stack([torch.permute(torch.tensor(img1),(2,0,1))]) # tensor shape (N, C, H, W)
img2_stack=torch.stack([torch.permute(torch.tensor(img2),(2,0,1))]) # tensor shape (N, C, H, W)
flow = model(preprocess(img1_stack).to(device), preprocess(img2_stack).to(device))

# plot
cv2.imshow('overlay', add_arrow_line( cv2.resize(cv2.addWeighted(img1,0.5,img2,0.5,0),(512,512)),flow[0][0]))
cv2.waitKey()

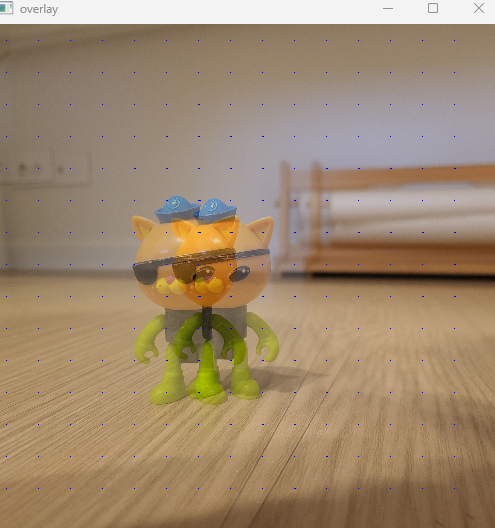

RAFT small의 결과. 실제 발생한 optical flow를 잘 반영하지 못하고 있다.

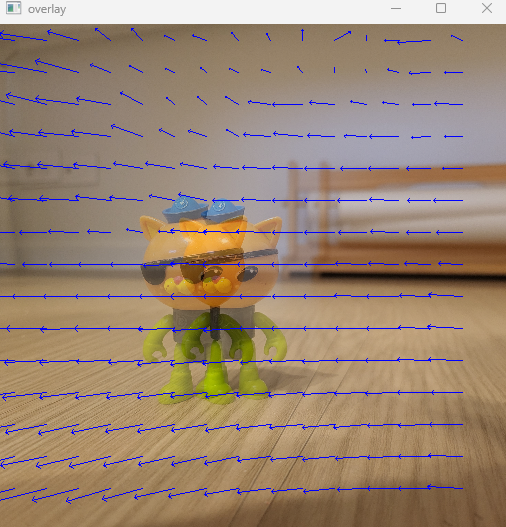

RAFT large 모델 결과. 훨씬 실제에 가까운 결과를 보여준다. 하지만,feature point가 없는 흰 벽에서는 여전히 정확도가 떨어짐.
